How to Use IcoMoon to Create and Integrate High Quality Vector Icon Fonts

2025-08-13 | Part 3 - IcoMoon Mastery: Advanced Icon Font Tips & Tricks for Mastering Icon Fonts icomoon tips covering editing, renaming, importing SVGs, pseudo-element icons tags: icomooniconshowtotools

Part 3: Ninja Tricks.


This is the grand finale in our 3 part series on IcoMoon and icon fonts.
In this post, we’ll cover pro-level tips or, as I like to call them, ninja tricks to help you get even more out of IcoMoon. Some are about working inside the app, and others will help you integrate icons more effectively into your projects.



#1: Adding More Icon Sets

IcoMoon ships with a few sets preloaded, but you can load many more, some free, some paid.

  • In the Selection view, click Icon Library at the top right.
Icon Library
Icon Library
  • Browse or search for additional sets.
Available Icon Sets
Available Icon Sets
  • Click Add to make them available in your project.
Add Icon Sets
Add Icon Sets

Free icon packs are usually under a Creative Commons license (CC). Always check the license before use.



#2: Editing Icons Inside IcoMoon

Need to rotate, flip, resize, or rename an icon before adding it to your font? IcoMoon has a built in Edit Mode.

  • From the Selection view, click the Edit (pencil) icon.
Edit Icon
Edit Icon
  • Click the icon you want to modify.
Select Icon
Select Icon
  • Use the edit icon toolbox modal to:
  1. Rotate/Mirror
    • Spin your icon or flip it horizontally/vertically
  2. Move
    • Shift the icon’s position on the canvas without changing its shape
  3. Scale
    • Resize the icon proportionally or stretch it if needed
  4. Canvas/Alignment
    • Adjust the icon’s canvas size and alignment so it sits perfectly in your design
Edit Icon Toolbox Modal
Edit Icon Toolbox Modal

This is especially handy when CSS scaling causes side effects. Editing directly in the font keeps the proportions perfect.



#3: Importing Your Own SVG Icons (and Public Icon Sets)

If the icon you need isn’t already in IcoMoon, or you’d like to tap into other free icon libraries, you can bring your own.

  • Create or open your icon in a vector editor (e.g. Adobe Illustrator, Figma, Gimp, Inkscape).
  • Export as SVG 1.1.
  • In IcoMoon’s Selection view, click Import Icons.
Import Icon
Import Icon
  • Upload your SVG file.
  • Name your imported icon set for easy reference. This helps keep things organized if you’re mixing multiple libraries.
Icon Set Properties
Icon Set Properties
Edit Icon Set Metadata
Edit Icon Set Metadata
  • If the icon has colors, remove all colors so you can style it with CSS later. Solid black vector paths work best.
Remove Icon Set Colors
Remove Icon Set Colors
  • Once imported, you can edit it just like any other icon in IcoMoon.

Many popular icon libraries like Bootstrap Icons and Devicons are openly available as SVGs. Just download the ones you want, import them straight into IcoMoon and clean them up (remove all colors).



#4: Renaming Your Font

By default IcoMoon maintains the original icon names from your uploaded SVGs.
That means when you import icons from outside libraries like Devicons, you’ll often see names such as javascript-plain, nodejs-original, or whatever the file was named during the import.

To keep your naming consistent and CSS-friendly:

  • Open Edit Mode (see Ninja Trick #2) — click the Edit (pencil) on the Selection view, then click the icon you want to change.
  • Rename in the Toolbox Modal.
    In the modal, update the Names field (e.g. change javascript-plainjavascript). This updates the exported class (e.g. .icon-javascript) at download time.
  • Optionally, rename any icons directly in the Font tab before downloading.
Rename Icon Before Downloading
Rename Icon Before Downloading

Consistent, readable names make your icon CSS classes easier to remember and prevent conflicts when you merge multiple icon sets in one project.



#5: Saving Your Session

When using IcoMoon, your modifications will automatically get saved in your browser’s cache (using IndexedDB).

It does not get uploaded to your user account on IcoMoon’s servers. If you clear your browser’s cache, this data will be lost.

If you are using a paid plan, your changes will automatically get uploaded and synced to your account on IcoMoon’s servers.

Always version control the selection.json session file from IcoMoon (available in generated font pack .zip you downloaded or accessed from Main Menu → Manage Projects → Project Name → Download). This file is your safety net for making updates in the future.

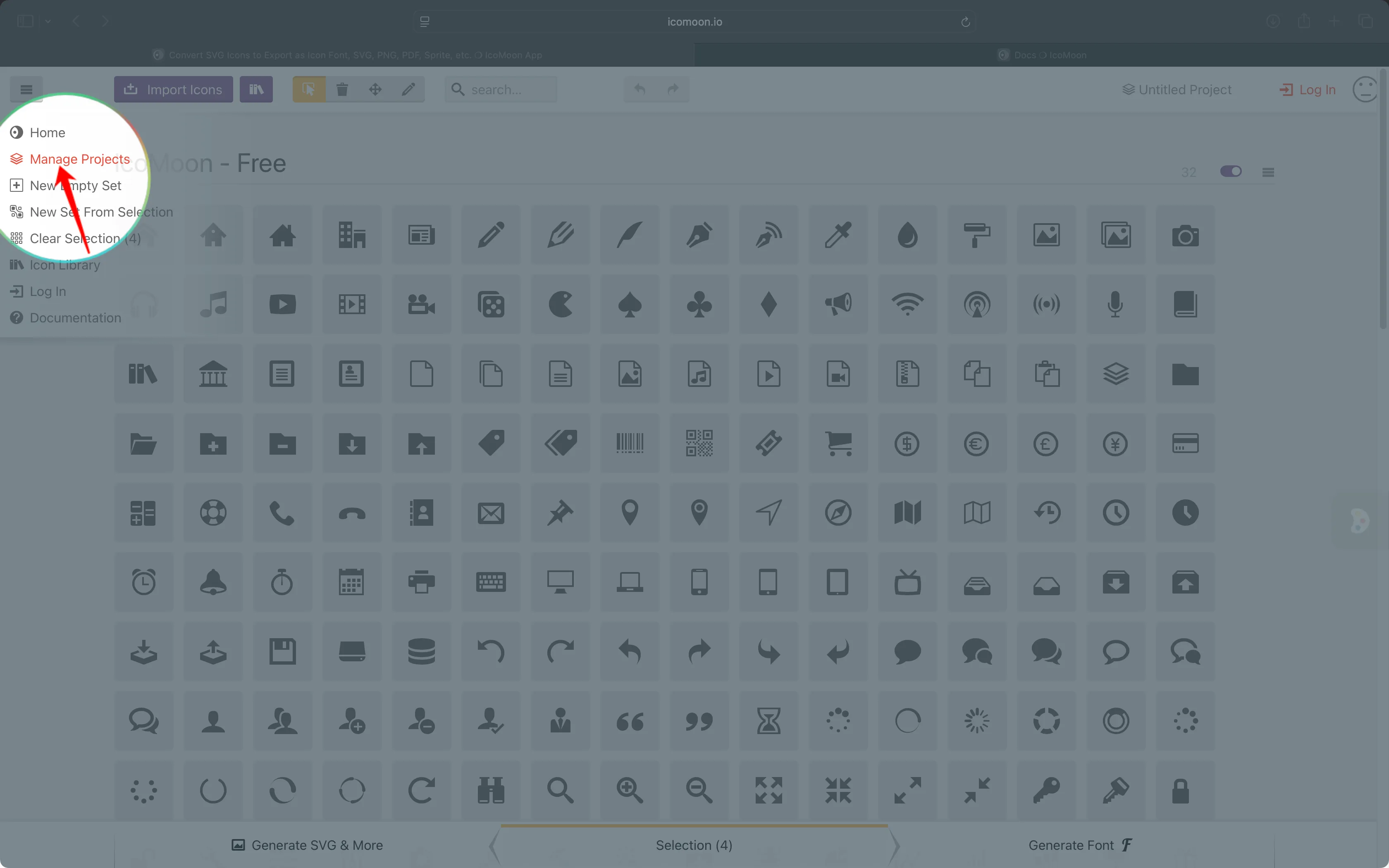

Manage Projects
Manage Projects

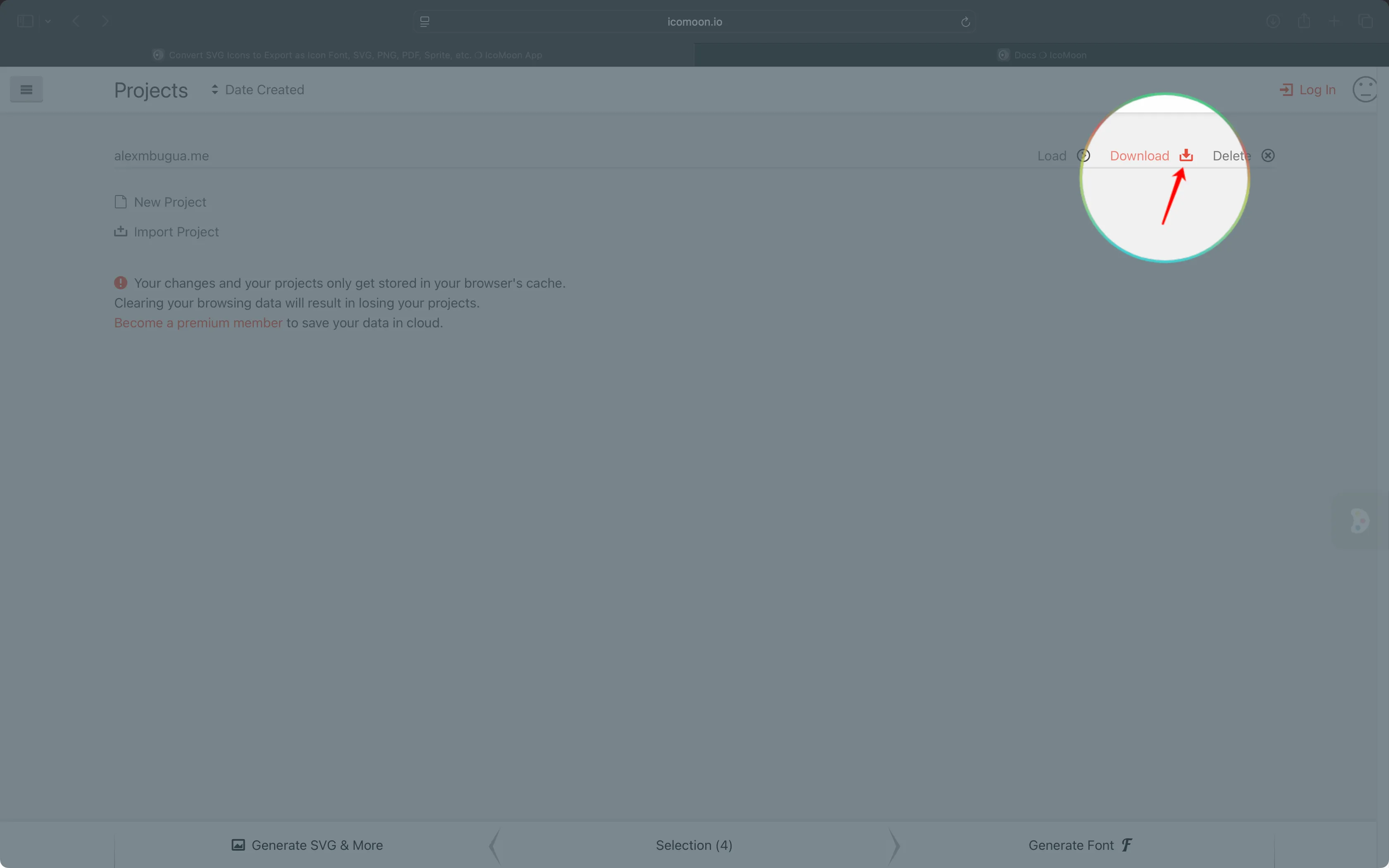

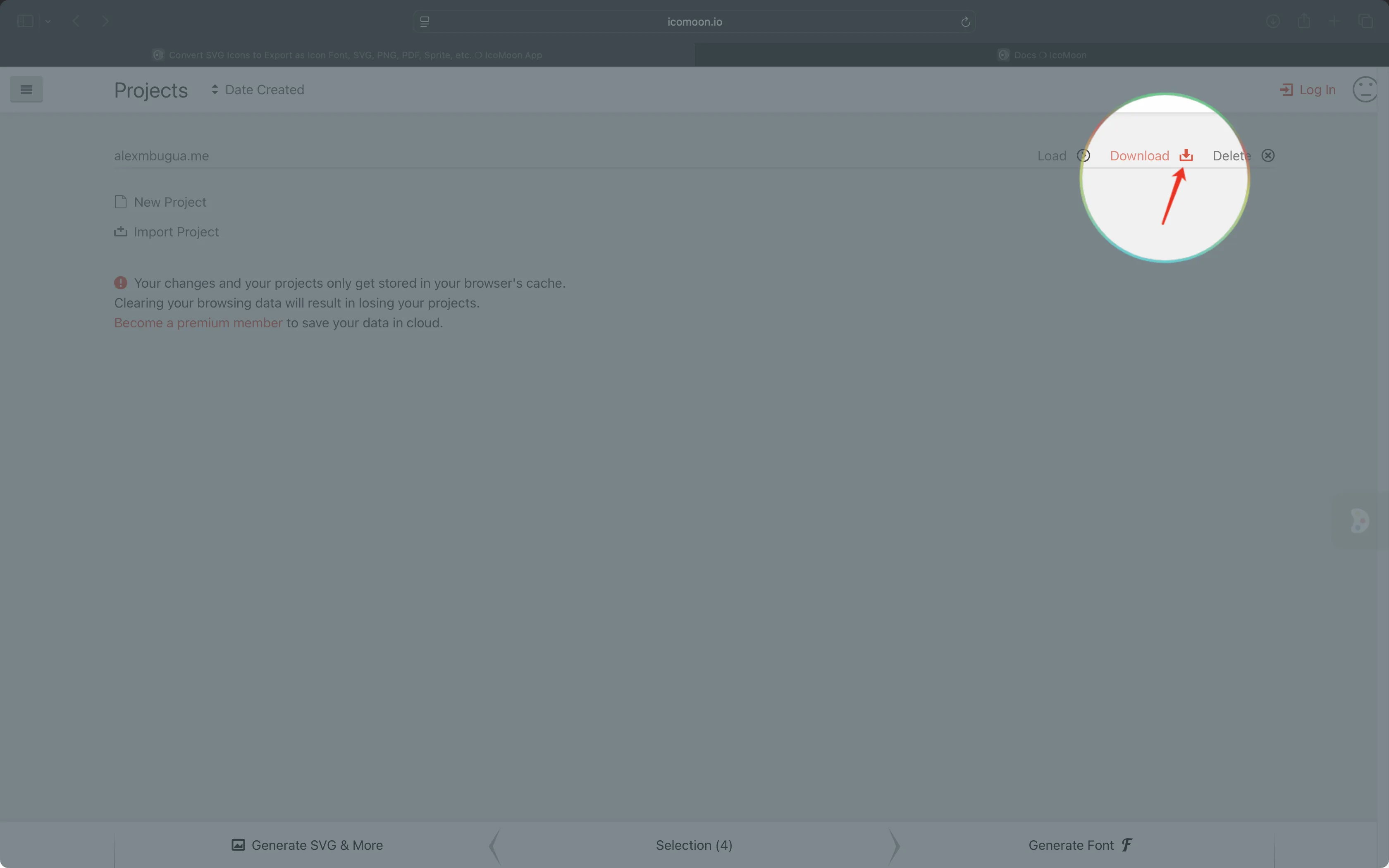

Download Project.json
Download Project.json

You may import this file both via the Import Icons button in the app, or via the project manager (accessed from Main Menu → Manage Projects). If you import your selection.json file via the project manager, your project settings will get imported too.

Import Icons
Import Icons

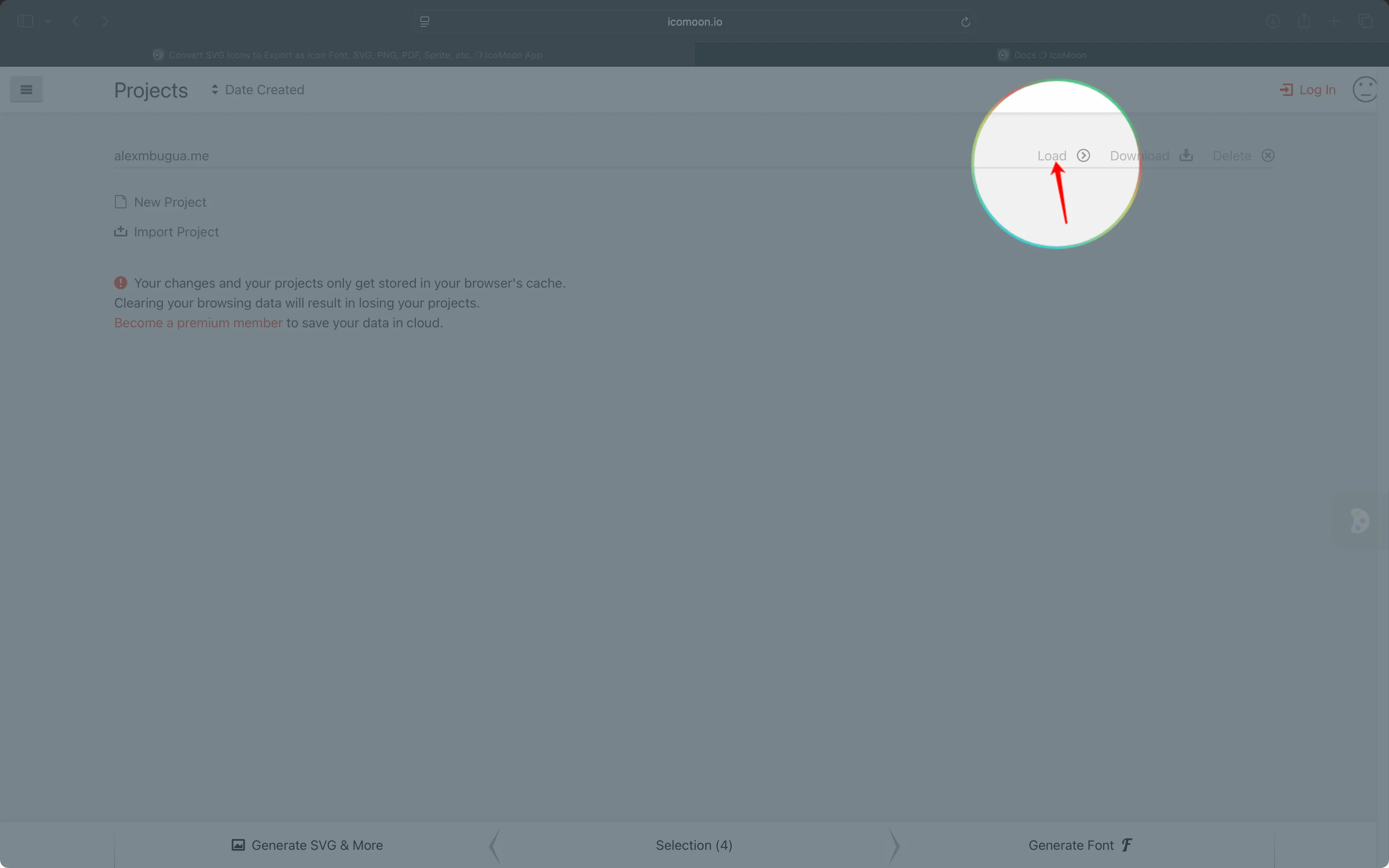

Load Project.json
Load Project.json

Store your selection.json alongside your project files (and in version control). You can load it later from Import Project and pick up exactly where you left off, even on a different computer.

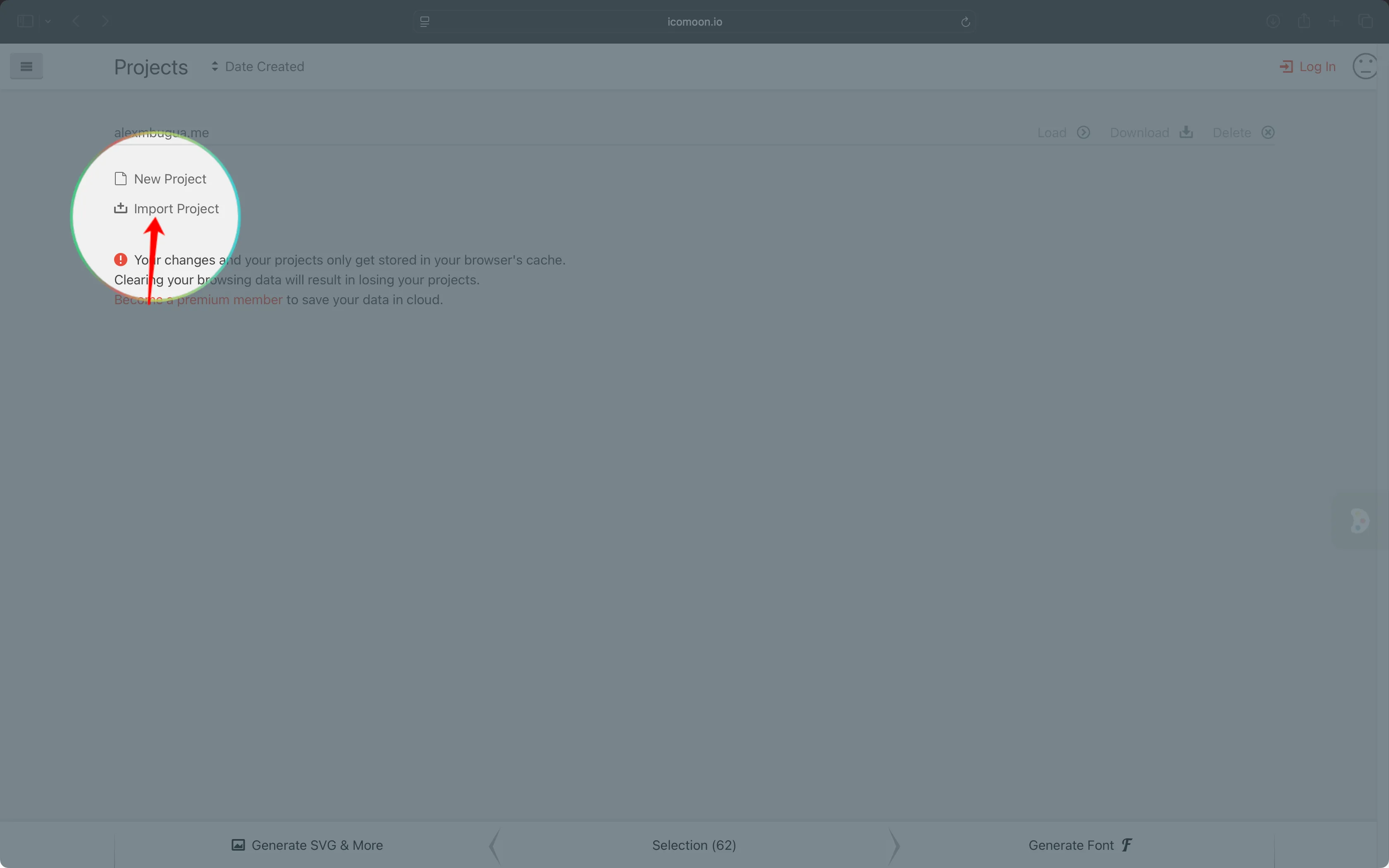

Import Project.json
Import Project.json


#6: Changing an Icon with JavaScript / jQuery

This one puzzled me recently, so I thought I’d save you the trouble. Let’s say you have an icon in your HTML, and you want to change it dynamically. For example, toggling between a pause icon and a play icon on a button.

With IcoMoon’s newer class-based approach, we don’t have to mess with HTML entities. We can just swap out icon classes directly.

HTML

<a href="#" id="pausePlayButton" class="btn">
  <i class="icon-play mr-2" id="playPauseIcon" aria-hidden="true"></i>
  Play
</a>

JavaScript (jQuery)

$("#pausePlayButton").click(function (e) {
  e.preventDefault();

  $("#playPauseIcon").toggleClass("icon-play icon-pause");

  // Optionally, update the button text too
  const isPlaying = $("#playPauseIcon").hasClass("icon-pause");
  $(this).contents().last()[0].textContent = isPlaying ? " Pause" : " Play";
});

What’s happening here:

  • We give the icon its own id so we can target it directly.
  • We toggle between icon-play and icon-pause classes provided by IcoMoon.
  • We also update the button text so the user knows the current state.

If you’re curious how it looked in my final implementation

HTML

<button id="playPauseBtn" class="flex items-center gap-2">
  <i id="playPauseIcon" class="icon-play"></i>
  Play
</button>

<script>
  const btn = document.getElementById('playPauseBtn');
  const icon = document.getElementById('playPauseIcon');

  btn.addEventListener('click', () => {
    if (icon.classList.contains('icon-play')) {
      icon.classList.replace('icon-play', 'icon-pause');
      btn.lastChild.textContent = ' Pause';
    } else {
      icon.classList.replace('icon-pause', 'icon-play');
      btn.lastChild.textContent = ' Play';
    }
  });
</script>

The best part? This approach is cleaner, easier to read, and works seamlessly with IcoMoon’s latest class naming.



#7: Sass Mixin Magic for Icon Classes (with Pseudo-Element Support)

Using Sass with icon fonts makes your workflow faster, cleaner, and much more maintainable.
You can also create mixins that work both for inline icons and pseudo-elements (::before / ::after).


  • Extendable base class
%icon {
  font-family: 'icomoon' !important;
  speak: none;
  font-style: normal;
  font-weight: normal;
  font-variant: normal;
  text-transform: none;
  line-height: 1;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}

  • Flexible mixin for class-based icons
@mixin icon-class($class, $pseudo: null) {
  @if $pseudo {
    &::#{$pseudo} {
      @extend %icon;
      @extend .#{$class};
    }
  } @else {
    @extend %icon;
    @extend .#{$class};
  }
}
  • $class → the IcoMoon class name (e.g., icon-play, icon-pause)
  • $pseudo → optional (before or after) if you want the icon injected with CSS only

Usage examples


Inline Icon (HTML element)


  • SCSS
.button-play {
  @include icon-class('icon-play');
}

  • HTML
<button class="button-play">Play</button>


Pseudo-Element icon


  • SCSS
.button-play::before {
  @include icon-class('icon-play', before);
  margin-right: 0.5rem;
}

  • HTML
<button class="button-play">Play</button>


Play/Pause toggle practical example


  • SCSS
.button-toggle {
  display: flex;
  align-items: center;
  gap: 0.5rem;

  &.is-playing::before {
    @include icon-class('icon-pause', before);
  }

  &:not(.is-playing)::before {
    @include icon-class('icon-play', before);
  }
}

  • HTML
<button id="playPauseBtn" class="button-toggle">Play</button>

  • JavaScript
const btn = document.getElementById('playPauseBtn');

btn.addEventListener('click', () => {
  btn.classList.toggle('is-playing');
  btn.textContent = btn.classList.contains('is-playing') ? 'Pause' : 'Play';
});

This approach keeps your CSS lean and your icon usage consistent.


Wrapping Up

That’s a wrap on our three part dive into IcoMoon and icon fonts. We’ve covered some nifty tricks to help you take full control of your icons. From importing and editing, to keeping your styles clean and consistent.
Keep an eye out for future installments where we’ll explore advanced moves like ligatures, custom character mapping, and other ways to squeeze even more magic out of icon fonts.
